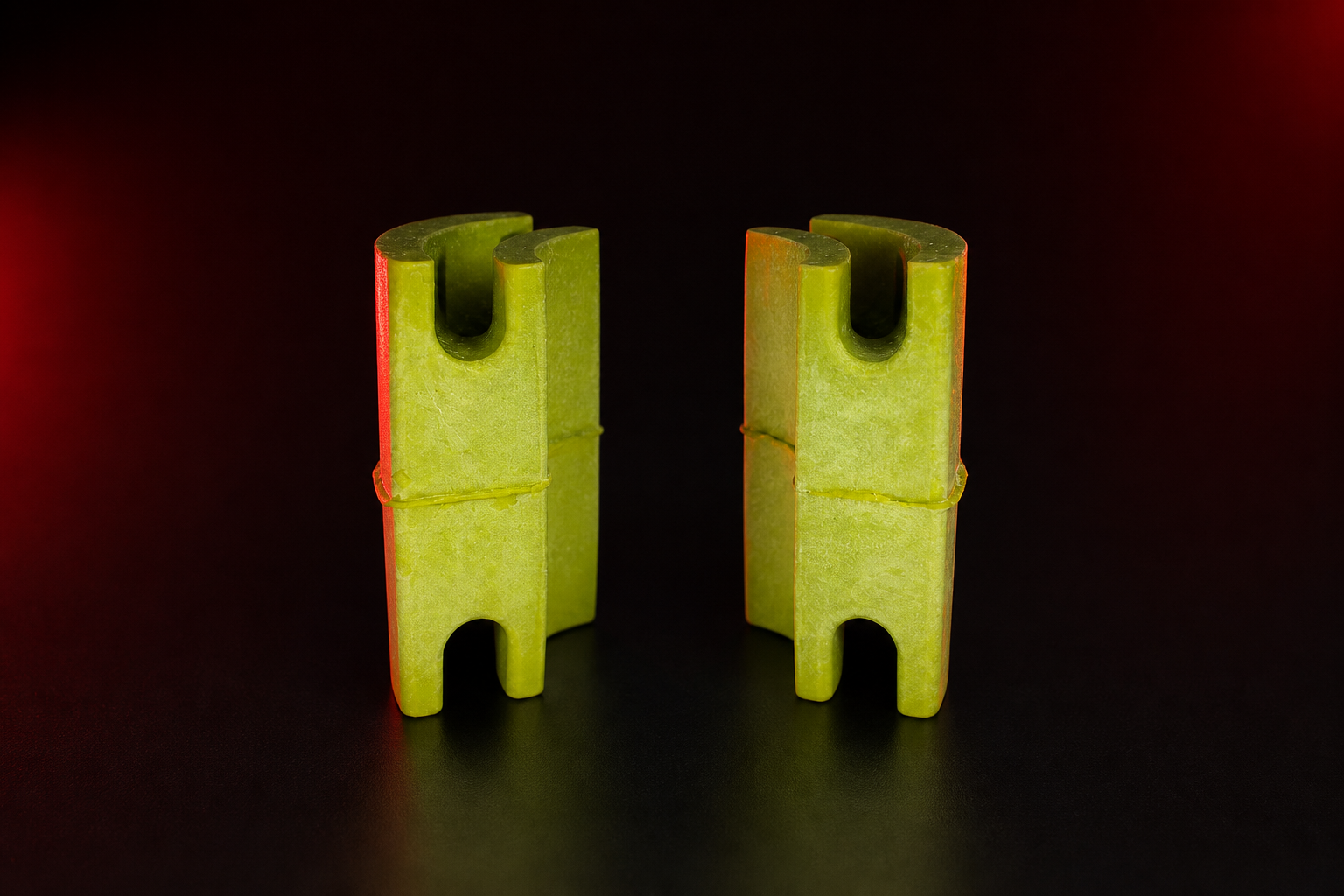

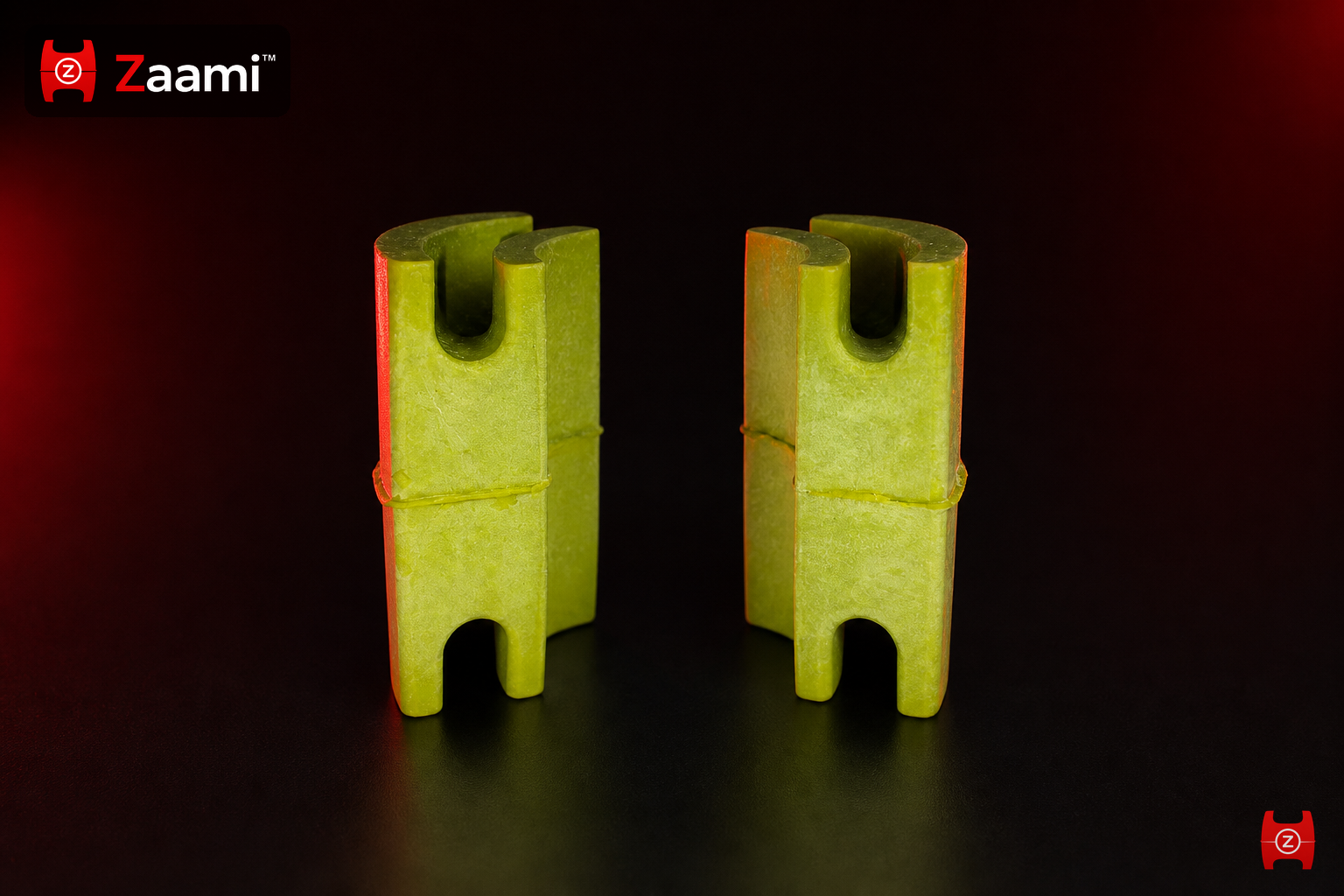

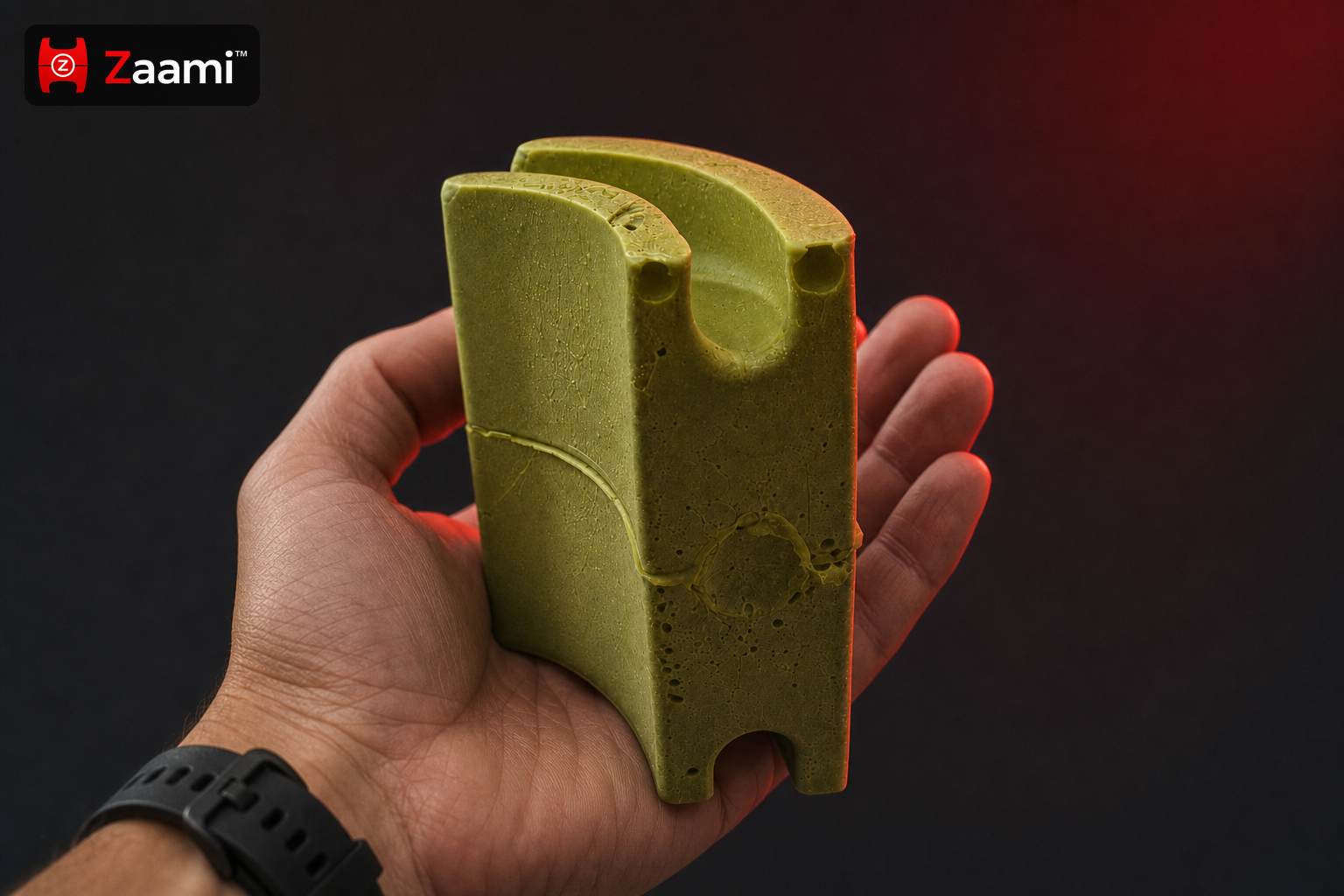

Zaami™ Coil Spring Buffer is built using high-quality rubber materials engineered for durability, flexibility and impact absorption. It provides a strong cushioning effect between the coil spring gaps.
Installation guide
Step-by-step — park safely, measure the gap, clean, insert, and seat front and rear buffers.

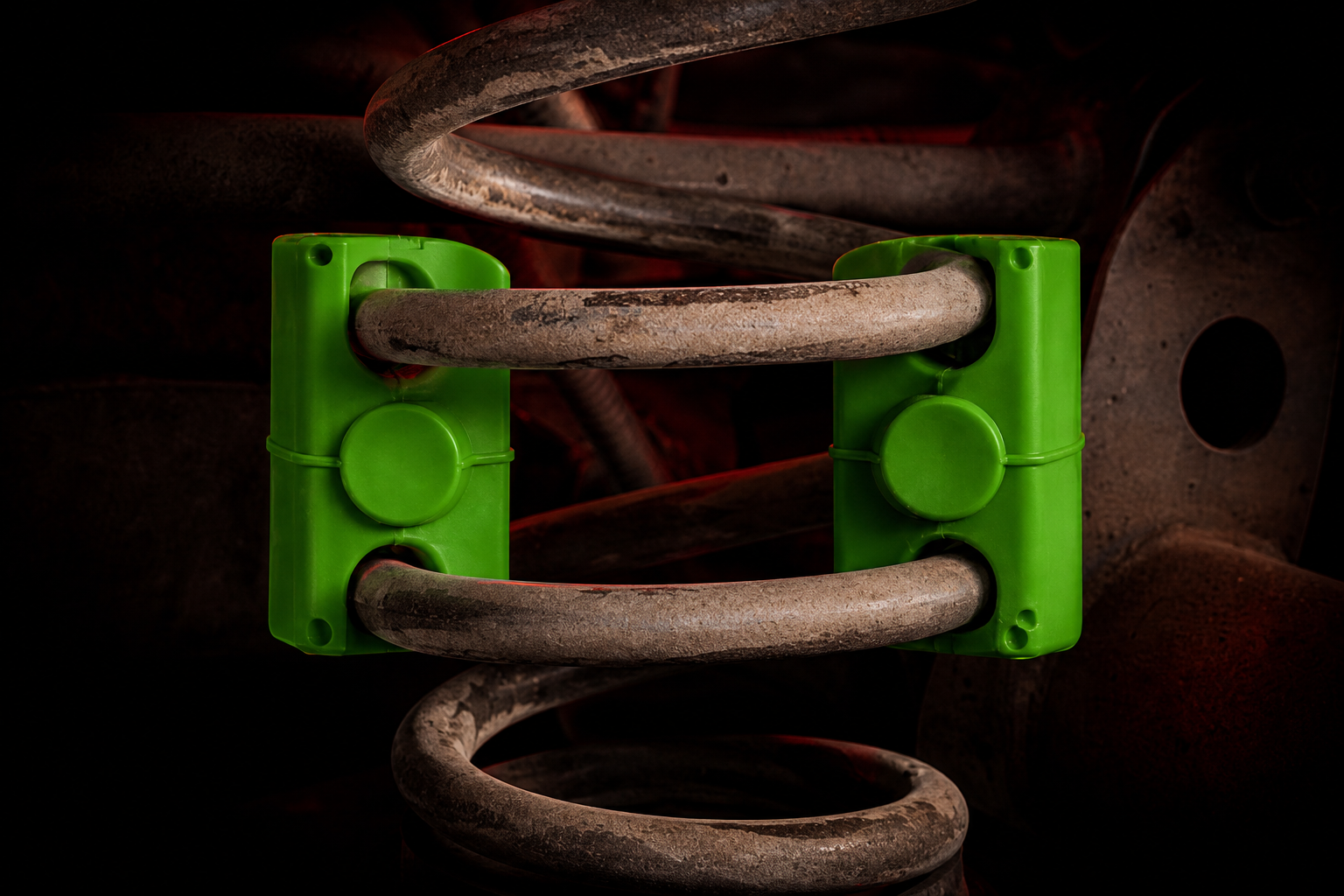

Step 01Locate the coil spring
Step 02Lift the vehicle safely
Step 03Measure the spring gap
Step 04Clean the springs
Step 05Insert Zaami between the coil

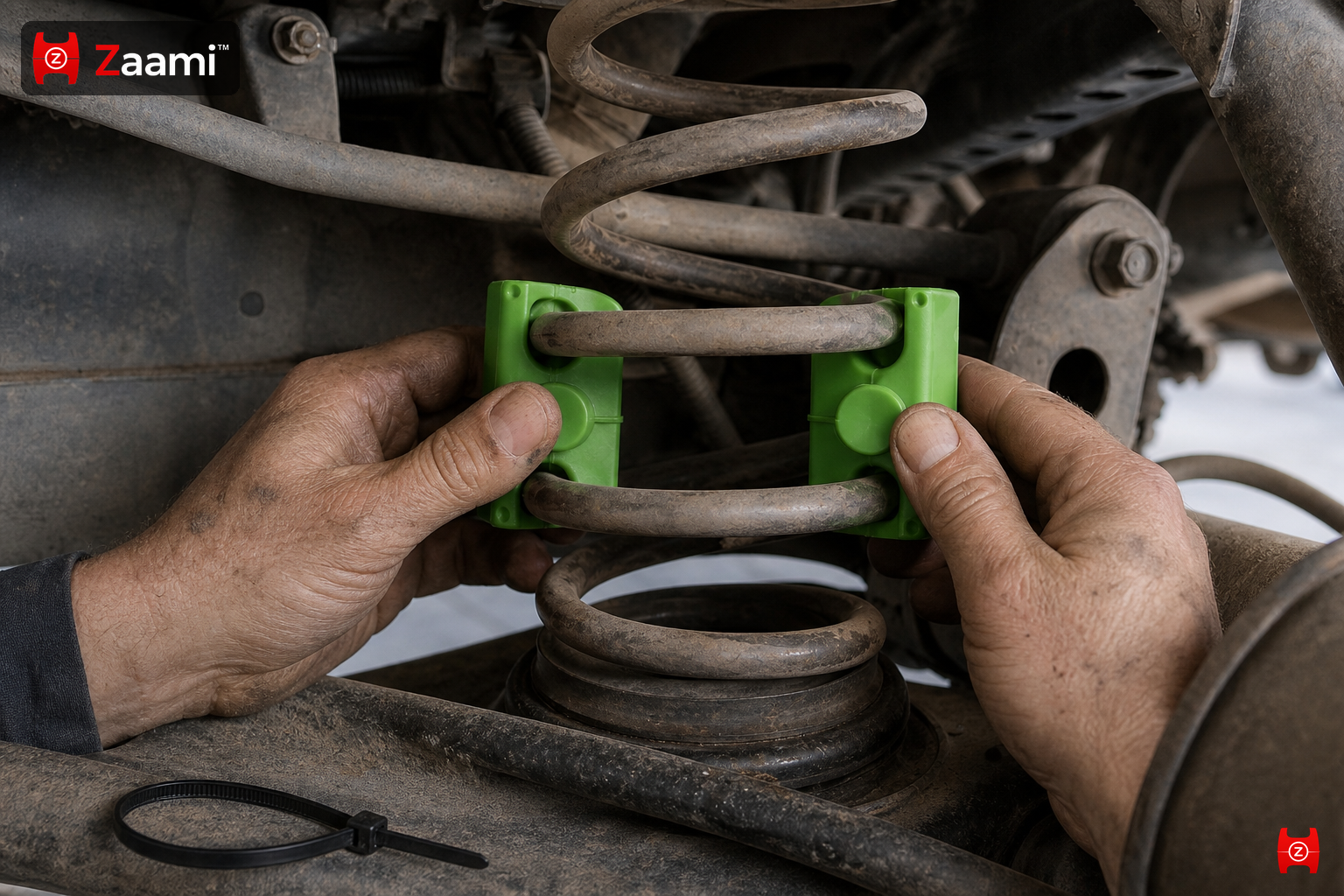

Step 06Seat & secure
Step 07Check the fit
Step 08Lower & road test
Park safely on level ground. Find the front or rear coil spring where Zaami will sit between the coils.
Use original Zaami buffer only

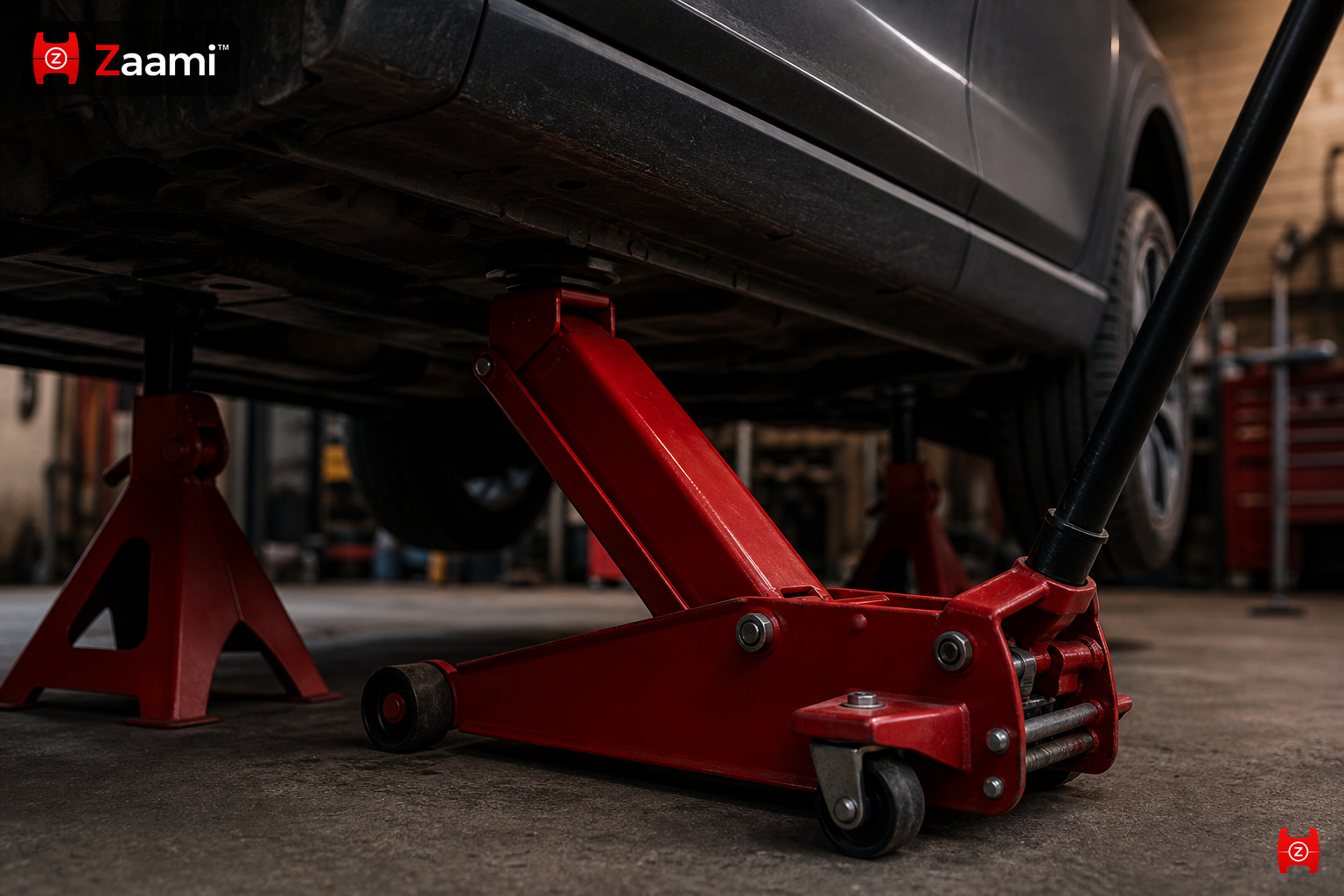

Use a jack and jack stands at the manufacturer points. Never work under a car supported only by a jack.
Use original Zaami buffer only

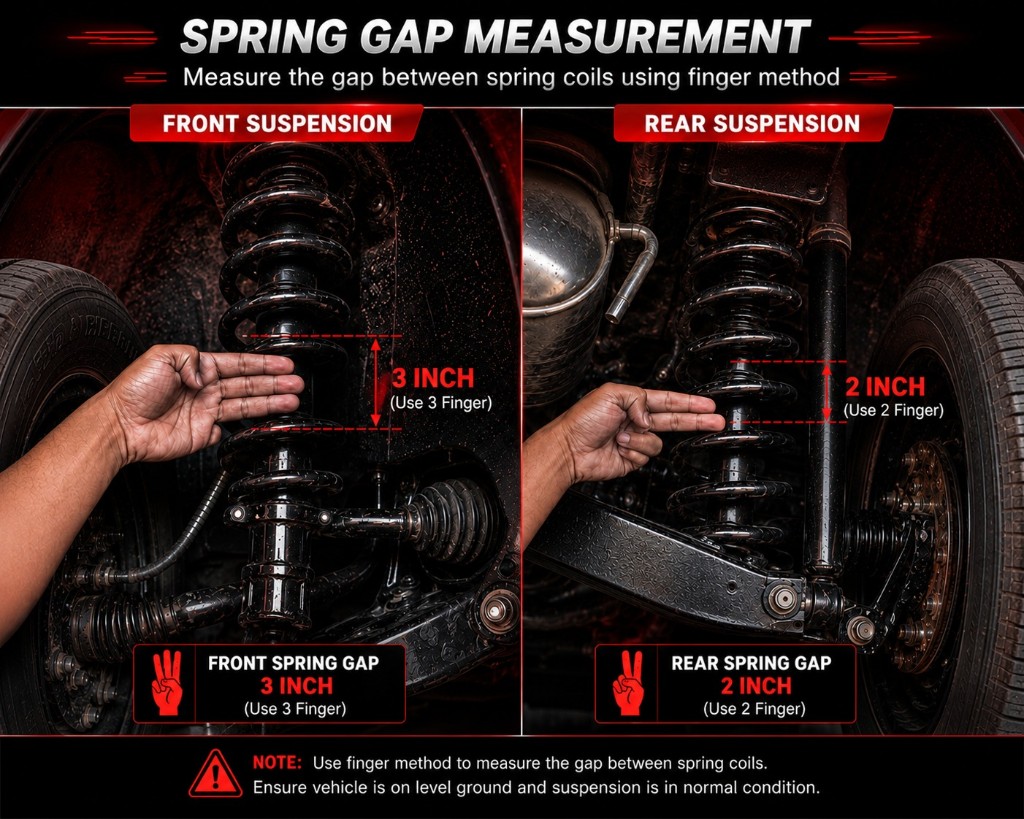

Measure the coil spring gap on the front and rear suspension using your finger to determine the correct size.
Use original Zaami buffer only

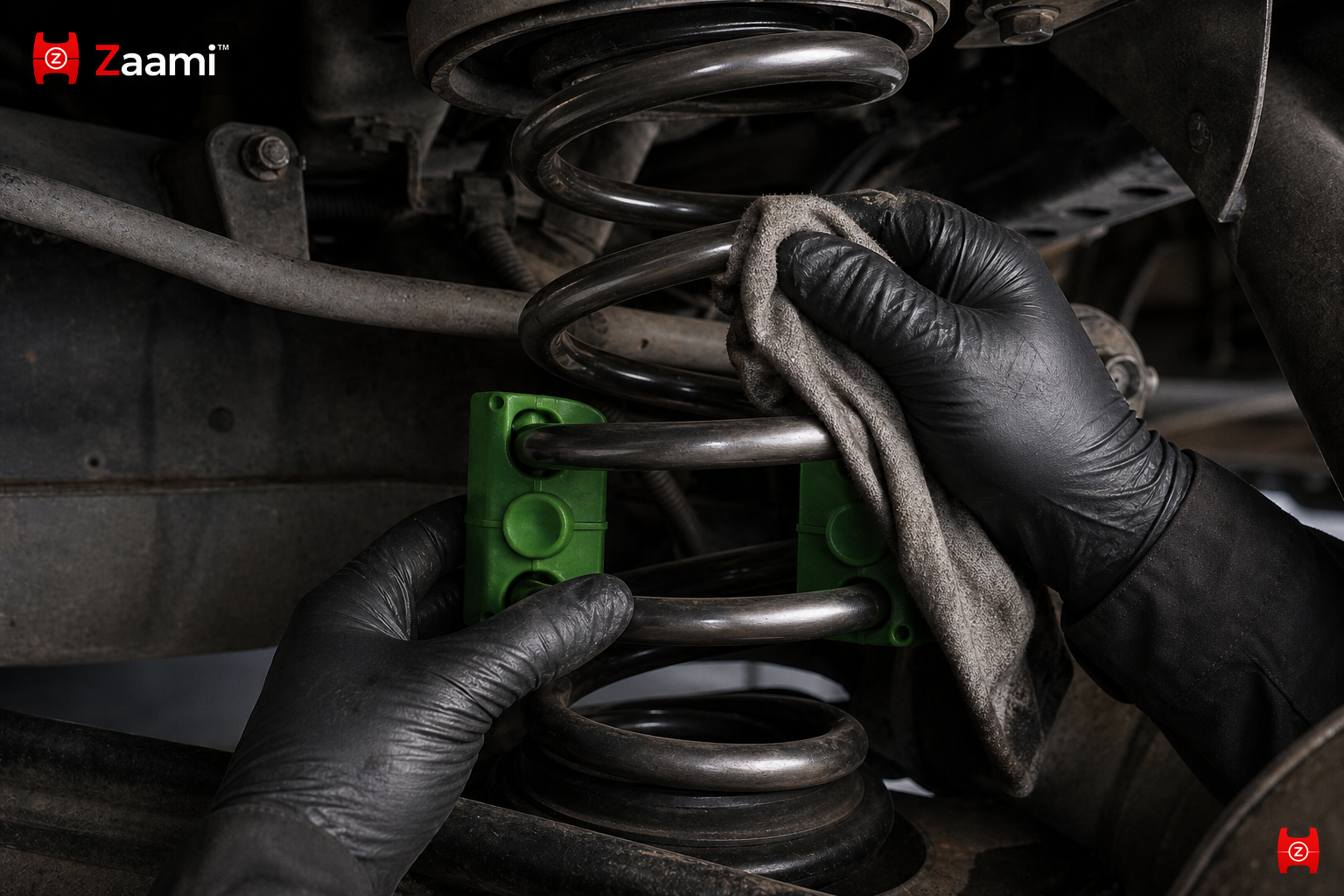

Wipe mud, rust flakes, and grease from the coil gap so Zaami seats firmly without slipping.
Use original Zaami buffer only

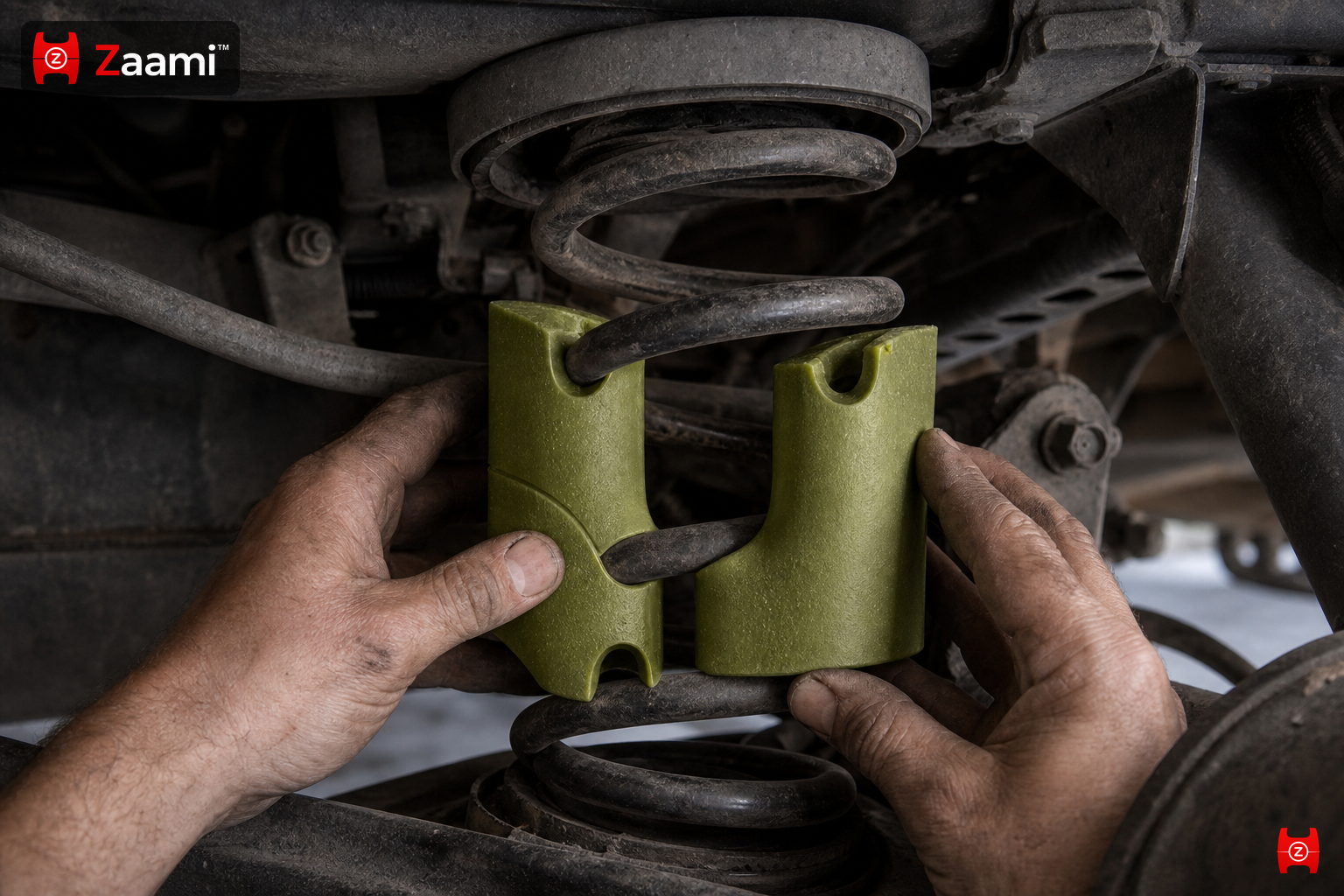

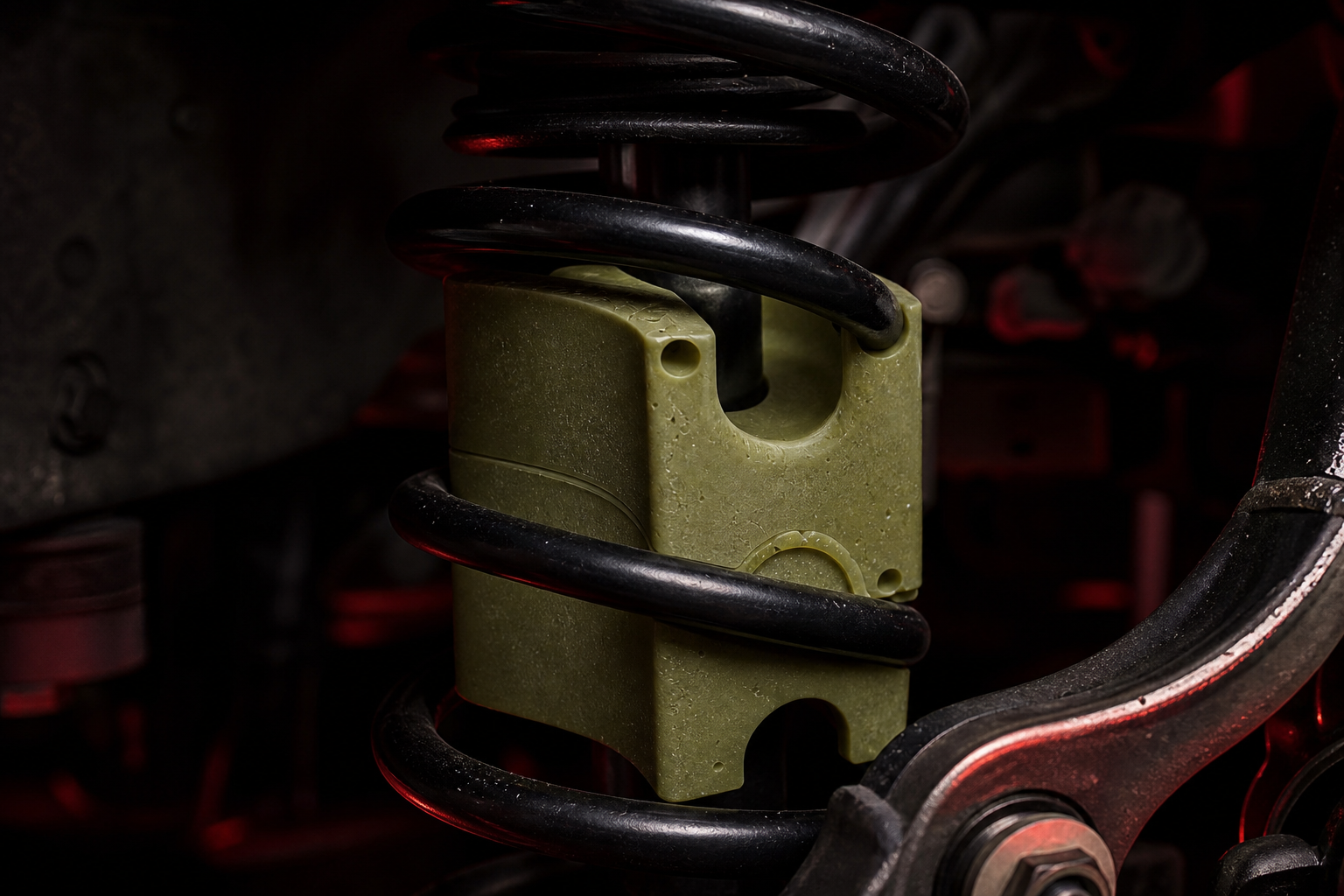

Insert Zaami safely between the coil springs using suitable tools. Ensure proper alignment and secure fitment.
Use original Zaami buffer only

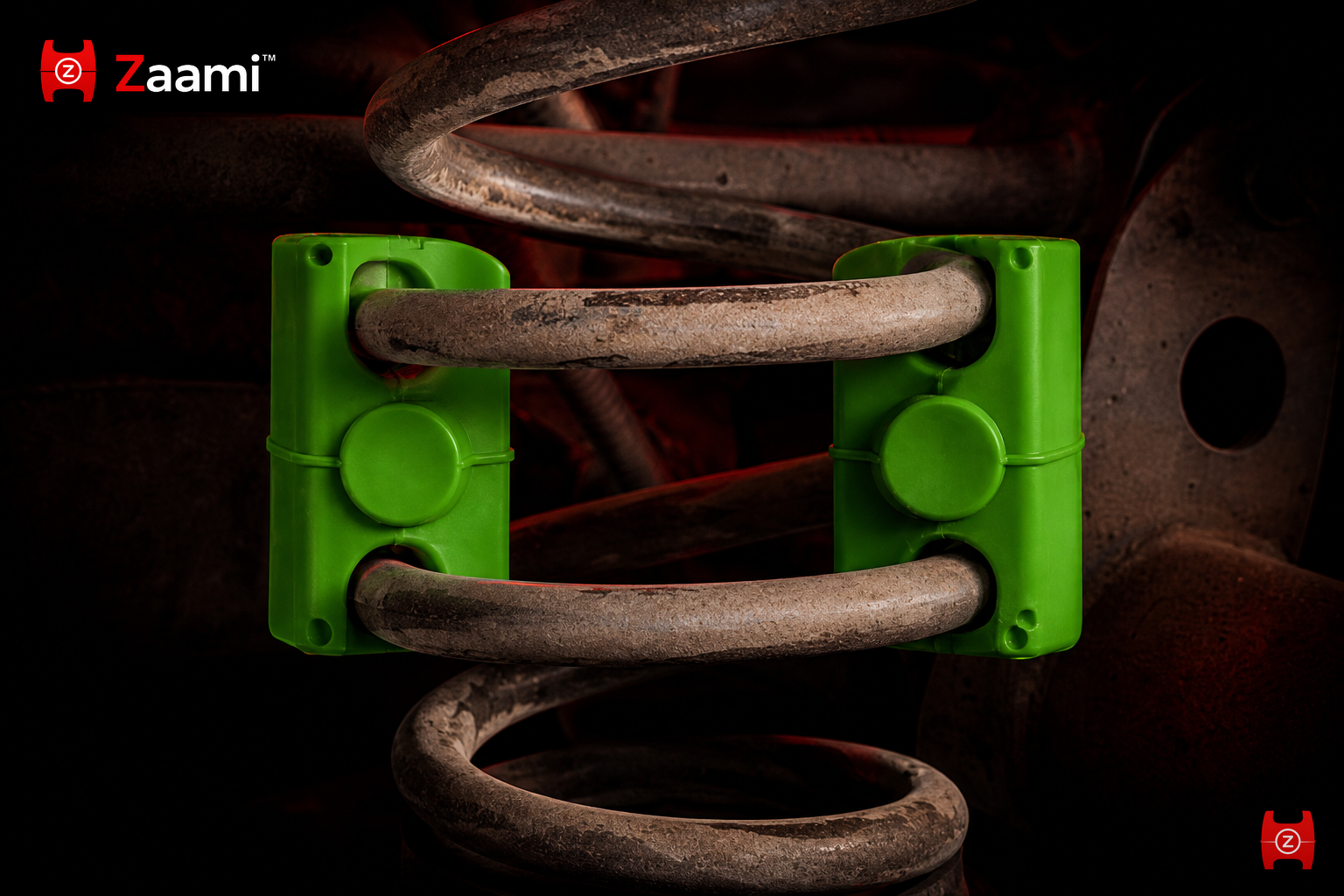

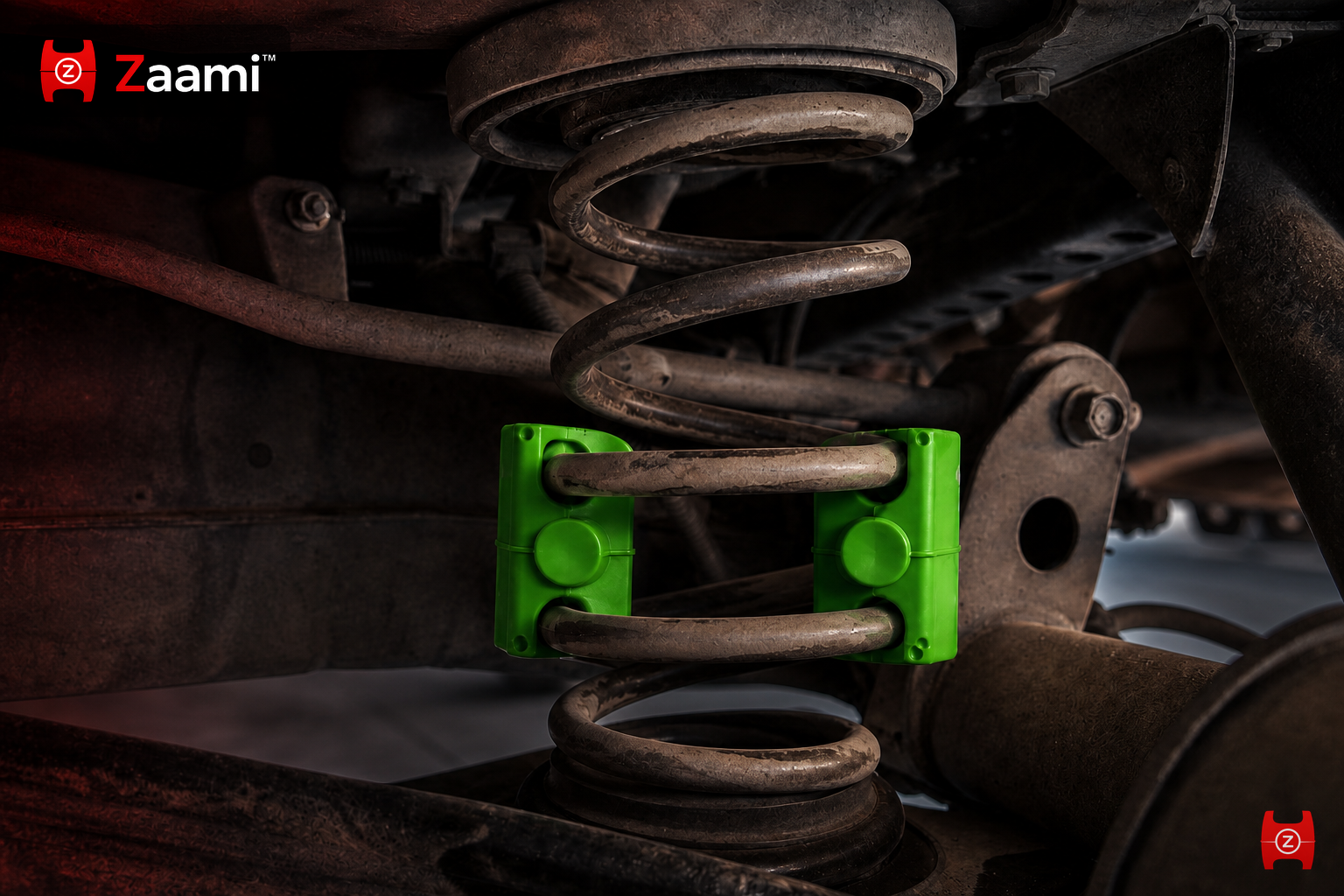

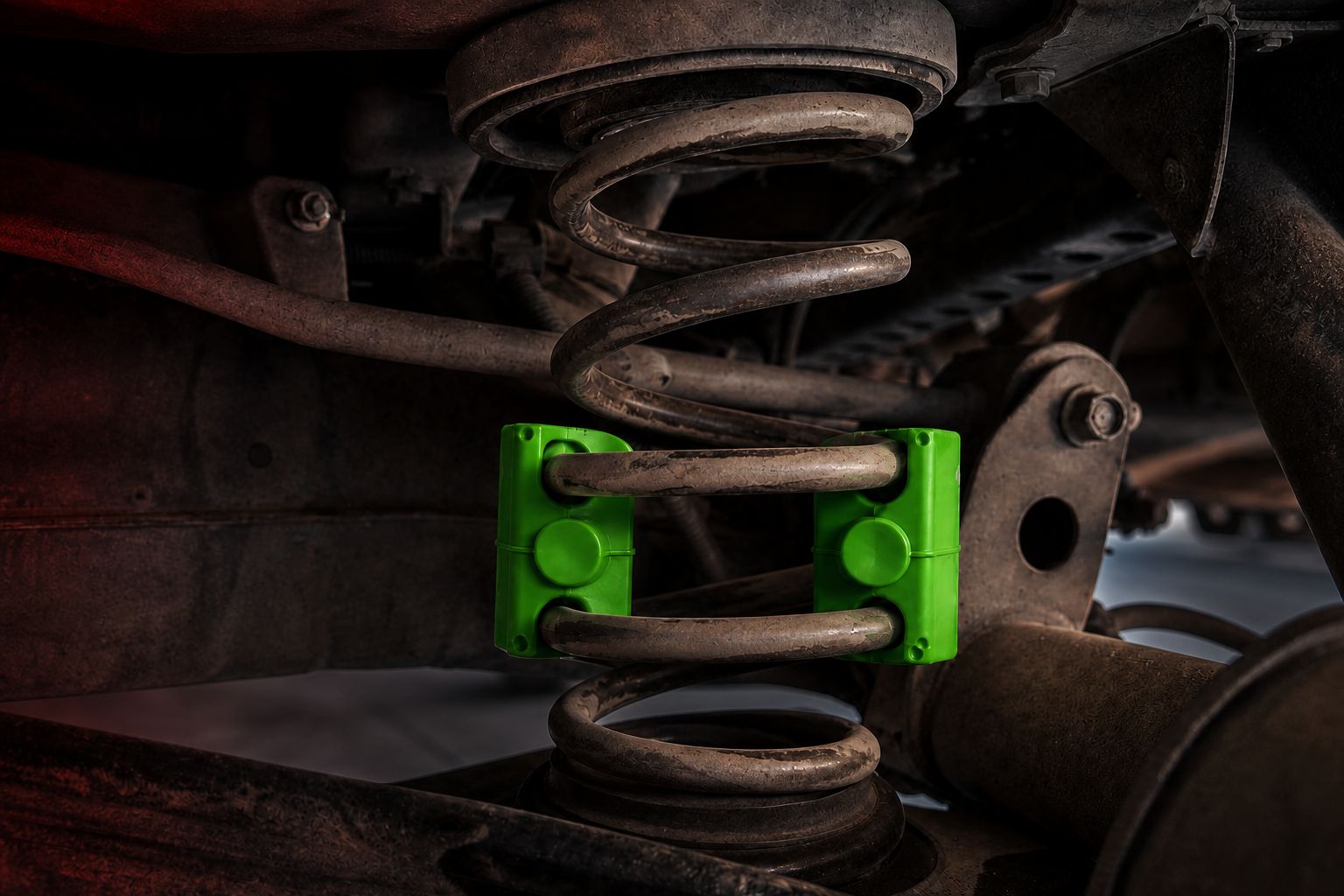

Push until each buffer sits centered in the coil gap. Fit front and rear as below.
Front suspension
Install 2 Zaami buffers on each spring. They can be positioned in the 1st or 2nd suitable coil gap, as per the spring design and available gap. With two front springs, 4 buffers are required in total.
Rear suspension
Install 2 Zaami buffers on each rear spring, leaving one coil gap from the bottom. Position the two buffers opposite to each other for balanced support. With two rear springs, 4 buffers are required in total.
Use original Zaami buffer only

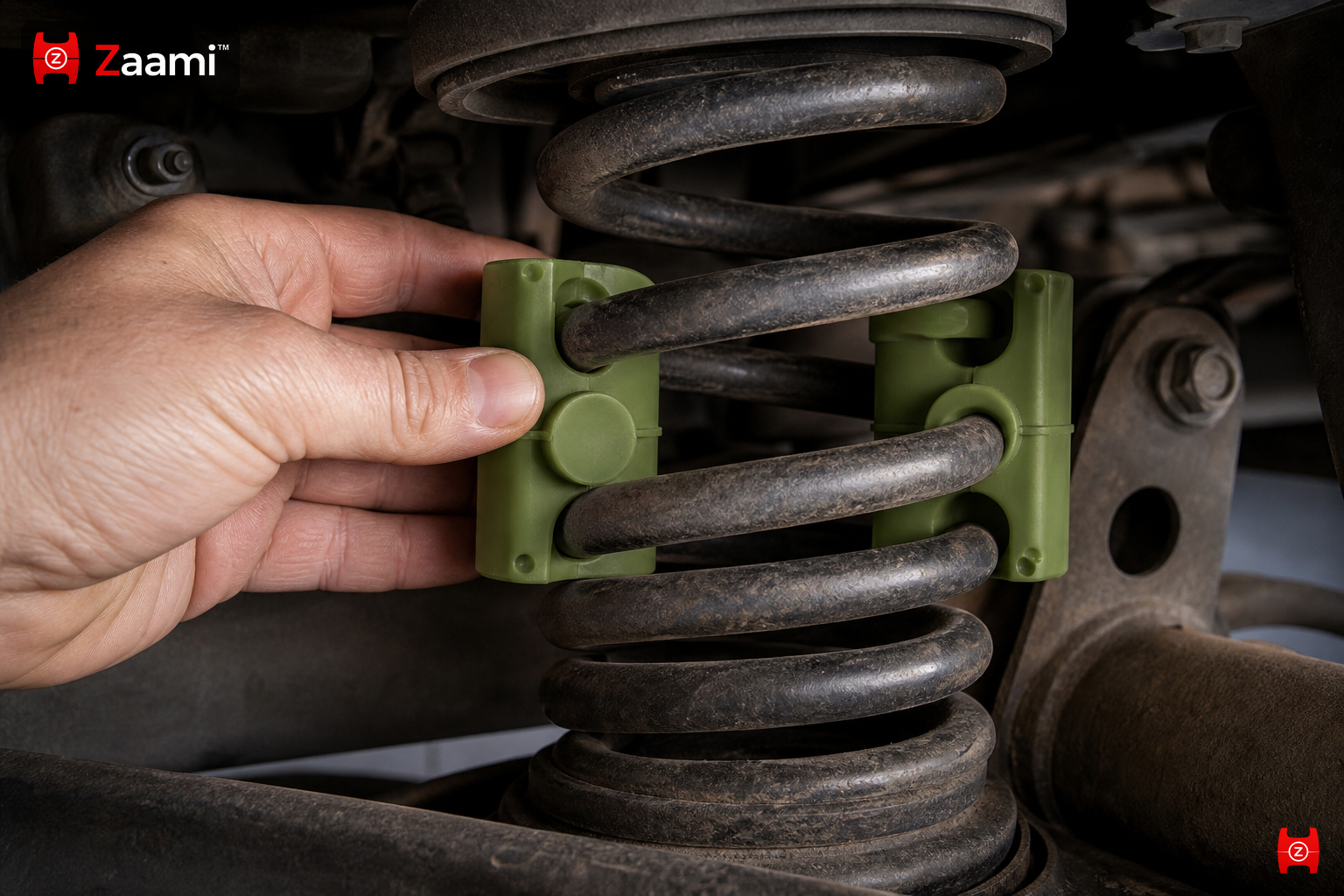

With the vehicle jacked up, Zaami should move slightly freely — not too tight and not too loose. After lowering the vehicle, check again. If Zaami still moves too freely, use the next larger size for a proper fit.
Use original Zaami buffer only
Lower the vehicle slowly. Take a short drive and re-check seating after 20–30 km.
Use original Zaami buffer only
24-month warranty after delivery
Watch it done
See Zaami fitted between the coil springs — measure the gap, insert, seat front and rear, then road-test.
More videos →Speed-breakers & potholes
Absorbs shock from speed-breakers and potholes — less jerk, more comfort.
Underbody protection
Helps prevent scrapes on rough roads.
Dealer fitment
Active partners across cities for install help.
Multi-car fit
Pick Brand → Model → Variant and order with confidence.

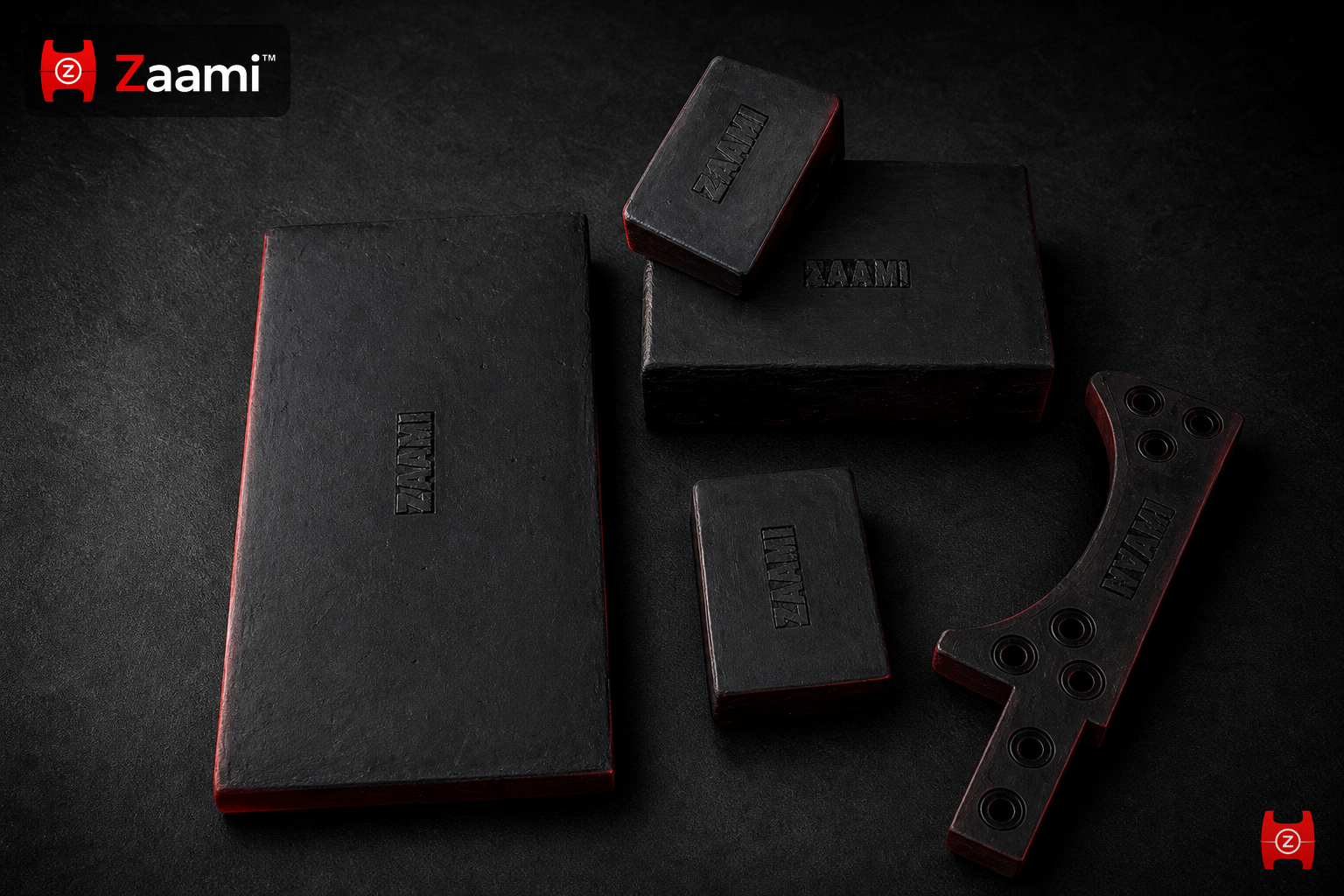

Workshop

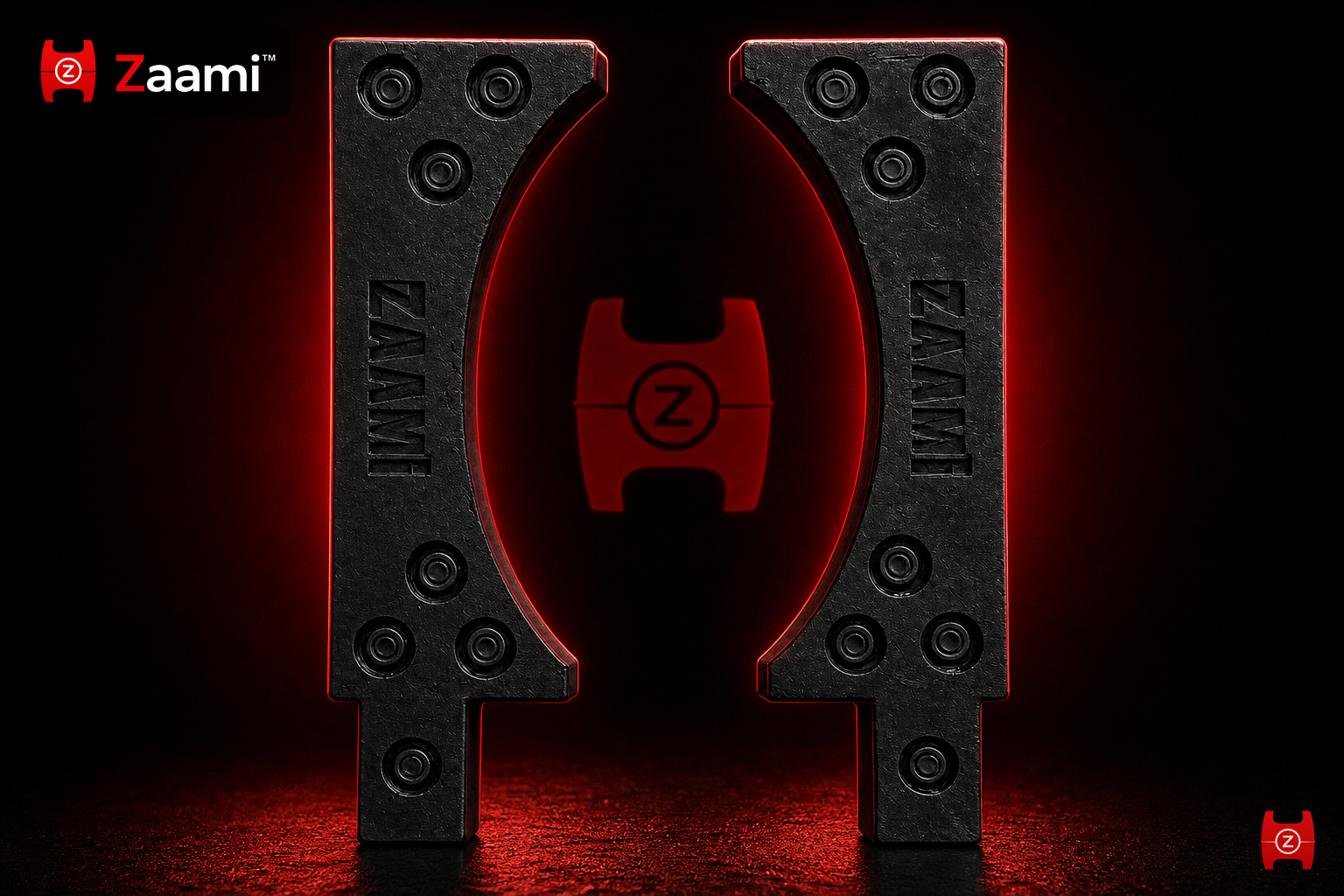

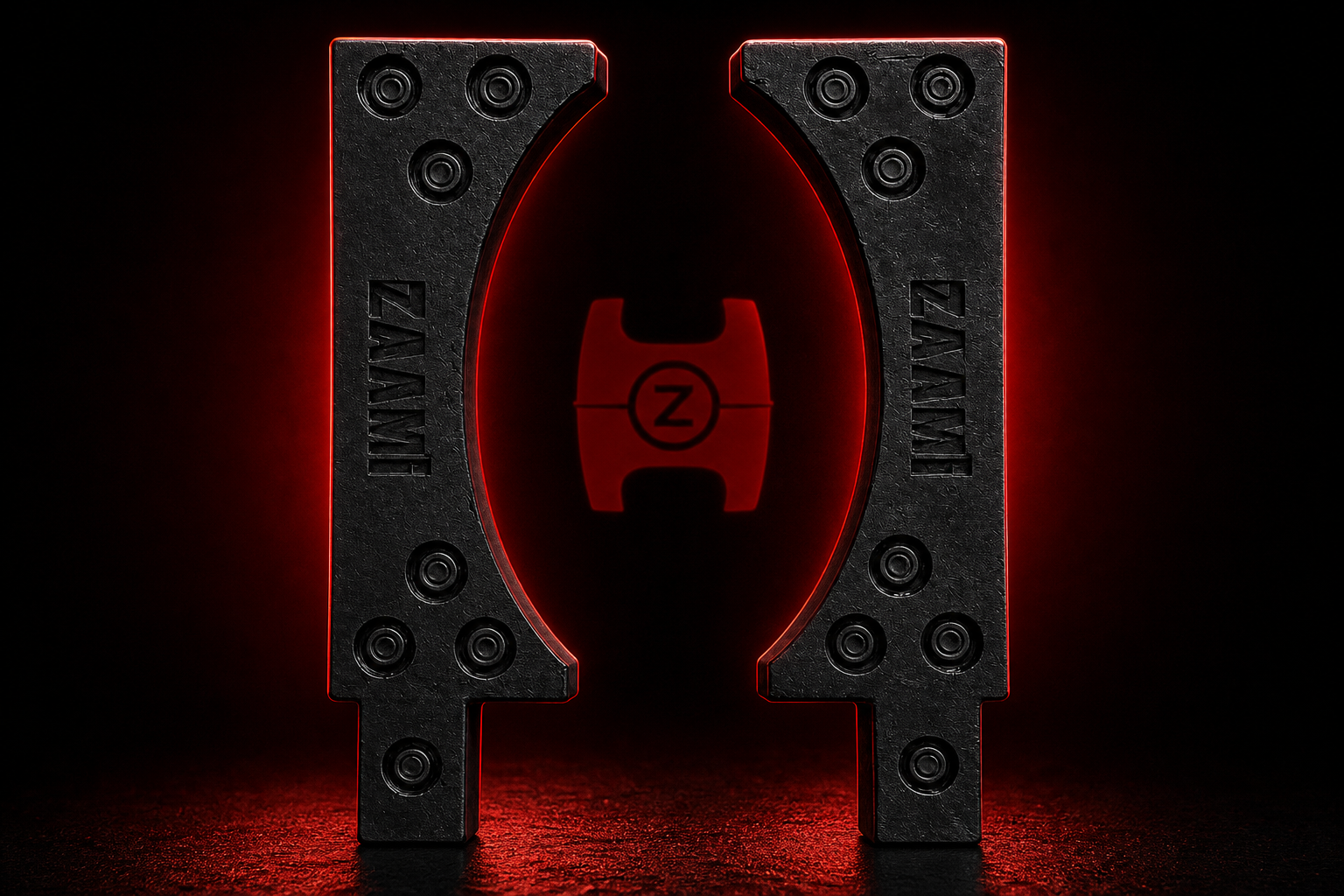

Zaami wheel alignment products for alignment bays — starting with the alignment turning plate pad.
